Havensis Digital Series; Thanks to its digital display, it stands out with its ability to display system parameters in detail. It offers both economical and functional features in the digital class for small power applications. Digital series charge controllers provide safe and efficient charging of batteries with microprocessor control and the latest algorithms. High efficiency Pulse Width Modulation (PWM) is preferred in small off-grid applications with the advantages of being equipped with charging technology and being economical. Easy-to-use user visual digital display interface and 2 different LED colours allow easy monitoring of solar panel and load output status with LED indicator and battery level on the digital display. Thanks to its programmable load output modes, it allows it to be used in general applications with timed night lighting applications and manual control of the load output with the button.
HAVENSIS
DIGITAL SERIES (DS)
MiniSolar-20ADS 20 AMPER 12/24V
SOLAR CHARGE CONTROL DEVICE
DOMESTIC PRODUCTION
INVOICED – GUARANTEED PRODUCT
TURKEY – PRODUCED IN BURSA

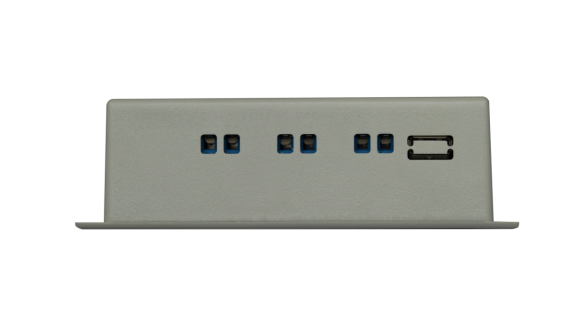

MiniSolar-20ADS WITH DIGITAL DISPLAY
DAY-NIGHT MODE WITH AUTOMATIC TIME ADJUSTMENT

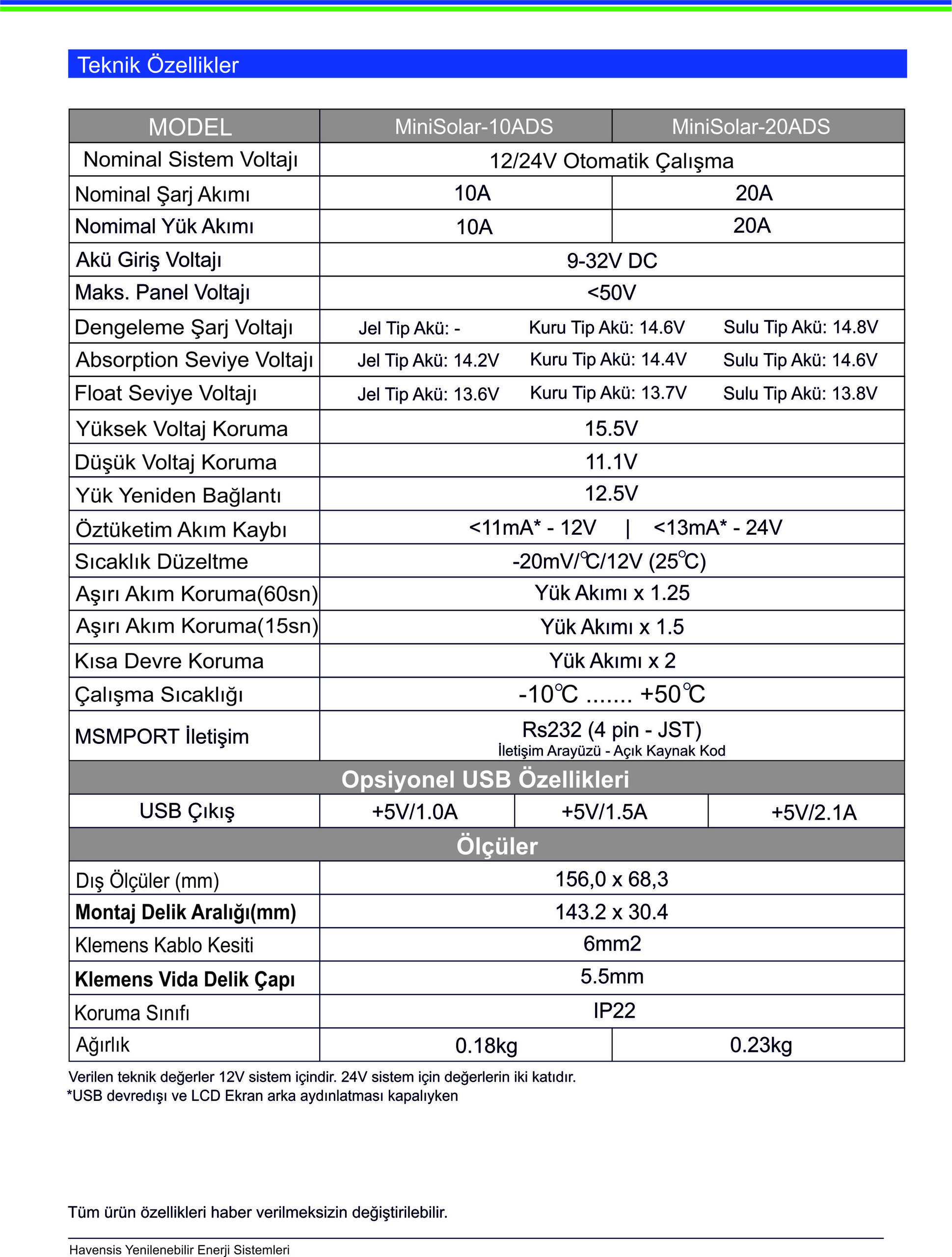

GENERAL CHARACTERISTICS
– MiniSolar-20ADS
– 12/24 volt Battery Charging (Automatic Recognition)
– 32bit ARM Microprocessor Controlled
– Day-Night Function
– LCD Display Shows Battery Voltage
– Load Current Appears on LCD Display
– Output Mode Appears on LCD Display
– LCD Display Shows Charge Level
– 7 Different Timed Load Output Functions
– LED Status Indicator
– 20Amper Charging Current
– 20Amperes Load Output Current
– Battery Low Voltage Protection
– Panel Reverse Current
– Protection(Night)
Electronic Protections
– Full Electronic Insurance
– Advanced Stepped Short Circuit Protection (Load output is completely switched off)
– Incremental Overload Current Protection
– Solar Panel Reverse Connection Protection
– Battery Reverse Connection Protection
– Battery High Voltage Protection
– Battery Low Voltage Protection
– Panel Reverse Current Protection(Night)
– Solar Street Lighting Systems
– Traffic Signal Signalling
– Small Off-Grid Solar Systems
– Solar Garden Lighting Lamps
